China Emulsion Filter  Lubrication filtration machines
Take-up of filter cloth: equipped with water level induction,chain and gear are synchronized
Adapted work: clean and filter for lubricating fluid in processing copper and aluminum wires
Filtering accuracy: 10-50um(depend on the model of filter cloth)
Filtering mode: the chain network transmission is fully automatic
Motor: motor is from BONFIGLIOLI Italy,protection grade is IP55
Detail

Copper Emulsion Filter

    Saham's copper emulsion filter with special water –outlet design to reduce the impact of the filter cloth,   electro- mechanical   control automatic cloth, stainless steel network design is convenient and easy to use ,which is the guarantee for producting good quality copper wire, advantages are as below:

1Keep the emulsion clean and free of spoilage;
2Remove copper powder in emulsion and prolong die life,
3Reduce the wear and prolong the life of the drum.
4Reduce the breakage rate and increase the output
5gravity reflow can be used without the use of additional emulsion pumps to save electricity
6With stainless steel chain network transmission, the tension of the filter cloth is always consistent and the cloth is smooth and unwinding
7Control the cloth automatically and save the cost of the filter cloth
8Reduce the blockage of the plate heat exchanger and avoid cleaning of heat exchangers frequently



Technical parameters of SAM-FT series emulsion filter

1、Adapted work: Clean and filter for lubricating fluid ofprocessing copper wire

2、Filtering accuracy: 10-50um (depend on the type ofcloth)

      3、Filtering   mode: the chain network transmission is fullyautomatic.

      4、Filter cloth take-up: equipped with waterlevel induction, chain and gear are synchronized.

      5、BONFIGLIOLI motor is from Italy,applicable voltage380V±10%,motorprotection grade IP55.


Main Technical Parameters

We can provide various types of copper emulsion filters, main technical parameters are as follows:


SAM-FT-175

SAM-FT-250

SAM-FT-500

SAM-FT-750

SAM-FT-1000

SAM-FT-1500

SAM-FT-2000

flange Diameter

DN65

DN65

DN100

DN150

DN200

DN200

DN200

Width of filter cloth(mm)

500

710

710

1000

1000

1500

2000

Motor PowerKW

0.12

0.12

0.12

0.18

0.18

0.24

0.24

Filtering capacityL/min

Max.175

Max.250

Max.500

Max.750

Max.1000

Max.1500

Max.2000

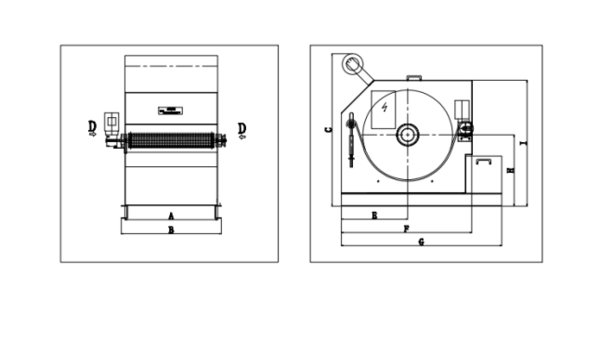

CAD DRAWING:


Time of warranty

Time of warrantyof the equipment is from completion of the debug within one year,the damage caused by wear parts and non sellers'reason are not within the scope of warranty.


Time of delivery               Terms of payment

30 days after payment                            T/T ; Western Union;


Feedback picture from our customer:

emulsion filter (2).jpgcopper emulsion filter (2).jpg

copper emulsion filter.jpg1591251719(1).jpgcopper emulsion fitration7.jpg
